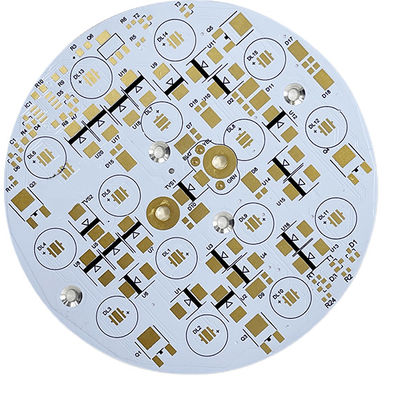

Thermal Conductivity Aluminum PCB Board with AOI Testing White Silk Screen DDU TO DOOR Delivery

Product Description:

Our Aluminum PCB Boards undergo a rigorous testing process to ensure that they meet the highest quality standards. We use advanced technologies such as AOI, X-Ray, Flying Probe, and more to test the boards for any faults or defects. This ensures that our customers receive only the highest quality products that are free of any defects.

We offer a variety of silkscreen colors to choose from, including white, black, and yellow. Our boards come with a black silkscreen as standard, but we can customize the silkscreen color to match your specific requirements.

The thermal conductivity of our Aluminum PCB Boards ranges from 1.0-3.0 W/mK, which is significantly higher than traditional PCBs. This makes our boards ideal for applications where high thermal conductivity is required, such as in power electronics, LED lighting, and automotive applications.

We offer our Aluminum PCB Boards in a variety of sizes, according to customer request. This means that we can create custom boards that meet your specific requirements, whether you need a small board for a simple application or a larger board for a more complex project.

Features:

• Product Name: Aluminum PCB Board
• Size: According To Customer Request
• Thickness: 1.5mm
• Testing: AOI, X-Ray, Flying Probe, Etc.
• Hole Tolerance: PTH: +/-3mil NPTH: +/-2mil
• Silkprint: White

This product is an Aluminum Core Printed Circuit Board (PCB) or a Copper Based Printed Circuit Board (PCB) used in various electronic applications.

Technical Parameters:

Applications:

The Aluminum PCB Board is ideal for use in LED lighting, power supplies, automotive, and computer applications. The board's metal substrate helps dissipate heat, making it ideal for high-power applications that generate a lot of heat. It is also suitable for use in applications that require high-frequency circuits, such as in the telecommunication industry.

The Aluminum PCB Board's hole tolerance is PTH: +/-3mil and NPTH: +/-2mil, ensuring that components are accurately placed on the board. The board's silk screen is black, making it easy to read component labels and other information. The product type is SMT PCB Assembly, which means it is ideal for surface mount technology (SMT) components.

The Aluminum PCB Board is designed for use in various scenarios, including medical devices, aerospace, and military applications. It is also suitable for use in consumer electronics, such as smartphones, tablets, and laptops. Its high thermal conductivity and excellent heat dissipation properties make it ideal for applications that require high reliability and long service life.

In summary, the Customized Aluminum PCB Board is a specialized type of printed circuit board that is used in various applications that require high thermal conductivity. It is manufactured in China using high-quality aluminum material and has a surface finish of HASL, OSP, ENIG, Immersion Silver, and Immersion Tin. The board's hole tolerance is PTH: +/-3mil and NPTH: +/-2mil, and its silk screen is black with white silkprint. It is suitable for use in various scenarios, including LED lighting, power supplies, automotive, computer, medical devices, aerospace, and military applications.
