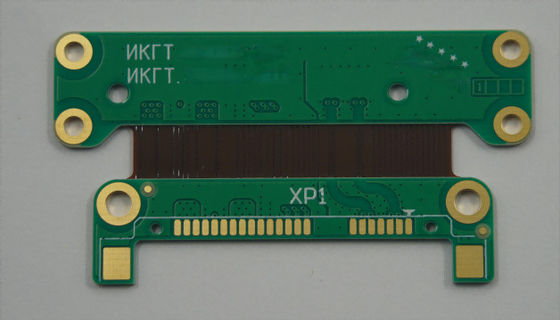

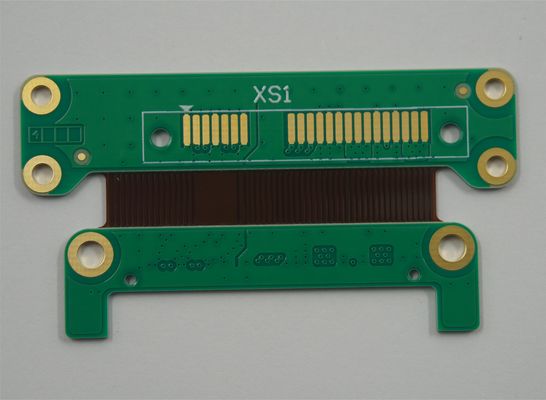

4 Layer Rigid Flex PCB Polyimide Kapton FR4 EING And Green Soldermask Integration
  • 4 Layer Rigid Flex PCB Polyimide Kapton FR4 EING And Green Soldermask Integration
  • 4 Layer Rigid Flex PCB Polyimide Kapton FR4 EING And Green Soldermask Integration

4 Layer Rigid Flex PCB Polyimide Kapton FR4 EING And Green Soldermask Integration

Place of Origin China
Brand Name Customized
Certification ISO90001,ROHS,REACH
Product Details
Product:
4 Layer Rigid Flex PCB Board
Outline Tolerance:
±0.1mm
Base Material:
Polyimide (Kapton) ( PI ) + FR4
Surface Finish:
ENIG, OSP
Copper Thickness:
0.5-1oz
Soldermask:
Coverlay, Green
Quote Requirement:
Gerber File And Bom List
Highlight:

Green soldermask Rigid Flex PCB

,

Polyimide Kapton Rigid Flex PCB

,

4 Layer Rigid Flex PCB

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Vacumm package
Delivery Time
Flexible
Payment Terms
Negotiation
Product Description

Product Description:

One of the notable features of our Rigid-Flexible Printed Wiring Board is its exceptional min line width of 4mil, which ensures that the board has a high level of precision and accuracy. This feature makes it the perfect choice for applications that require high-density circuitry and fine-pitched components.

In addition to its precision and accuracy, this Rigid-Flexible Printed Wiring Board is available in three different surface finishes: HASL, ENIG, and OSP. Each of these surface finishes provides unique benefits, and you can choose the one that best fits your specific needs.

Another notable feature of our Rigid-Flexible Printed Wiring Board is its outline tolerance of ±0.1mm, which ensures that the board has a high level of consistency and uniformity. This feature makes it the perfect choice for applications that require a high level of precision and accuracy.

Our Rigid-Flexible Printed Wiring Board is designed to meet the highest industry standards, and we only require Gerber File And Bom List to provide you with a quote. This feature ensures that you get the best value for your money, and you don't have to worry about any hidden costs or fees.

Finally, our Rigid-Flexible Printed Wiring Board comes with a copper thickness of 0.5-1oz, which ensures that the board has a high level of durability and reliability. This feature makes it the perfect choice for applications that require a high level of strength and resilience.

Overall, our Rigid-Flexible Printed Wiring Board is the ideal choice for various applications that require a high level of performance, flexibility, and reliability. Whether you're working on a complex project that requires a high level of precision and accuracy or a project that requires a high level of strength and resilience, our Rigid-Flexible Printed Wiring Board is the perfect choice for you.



Features:

  • Product Name: Rigid-Flexible Printed Circuit Board
  • Copper Thickness: 0.5-1oz
  • Outline Tolerance: ±0.1mm
  • Surface Finish: ENIG
  • Quote Requirement: Gerber File And Bom List


Technical Parameters:

Product Attribute Value
Product Name Flex-Rigid Printed Circuit Board
Soldermask Coverlay, Green, Red
Copper Thickness 0.5-1oz
Outline Tolerance ±0.1mm
Quote Requirement Gerber File And Bom List
Base Material Polyimide (Kapton) ( PI ) + FR4
Certificates ISO9001, ISO14001, RoHS
Surface Finish ENIG, OSP
Smt Efficiency BGA.QFP.SOP.QFN.PLCC.CHIP
Min Line Width 4mil


Applications:

These boards are ideal for a wide range of product application occasions and scenarios. They can be used in medical devices, communication equipment, aerospace and military applications, automotive electronics, and more. The flexibility of the Rigid-Flexible Printed Wiring Board allows for unique designs and configurations that may not be possible with traditional rigid or flexible circuit boards. The boards can be made to fit into tight spaces and can be bent and folded to meet the specific needs of the device.

The Rigid-Flexible Printed Circuit Board is designed to withstand harsh environments, making them ideal for outdoor and industrial applications. They are resistant to moisture, heat, and chemicals, ensuring a durable and long-lasting solution. The boards are also designed to be reliable, with a high level of conductivity and low impedance.

The Flexible Rigid Printed Wiring Board is available in a range of specifications, including soldermask options of Coverlay, Green, and Red. The outline tolerance is ±0.1mm, and the copper thickness is available in 0.5-1oz. To get a quote, a Gerber File and specification are required.

These boards are vacuum packaged for safe transportation and are delivered flexibly to meet the needs of the customer. The price is negotiable, making them an affordable solution that can be customized to meet the specific needs of the device.
