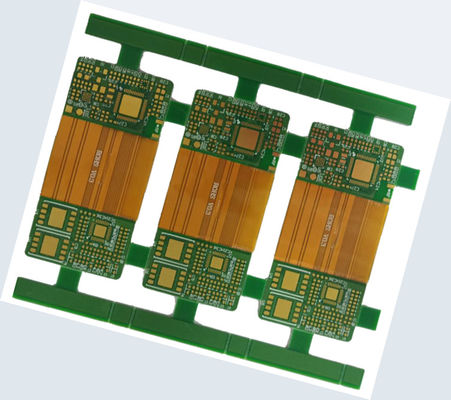

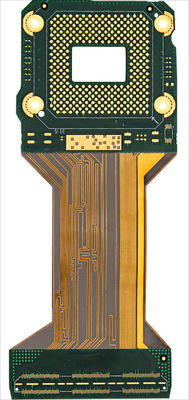

4 Layer Rigid Flex Circuit Board With FR4 High TG And PI With ENIG Finish 4mil Line
  • 4 Layer Rigid Flex Circuit Board With FR4 High TG And PI With ENIG Finish 4mil Line
  • 4 Layer Rigid Flex Circuit Board With FR4 High TG And PI With ENIG Finish 4mil Line

4 Layer Rigid Flex Circuit Board With FR4 High TG And PI With ENIG Finish 4mil Line

Place of Origin China
Brand Name Customized
Certification ISO90001, ROHS,REACH
Product Details
Product:
Rigid Flex Circuit Board
Min Line Width:
4mil
Board Thickness:
0,15FPC+ 1.6 PCB
Copper Thickness:
0.5-1oz
Outline:
Routing And Laser
Surface Finish:
ENIG, OSP
Soldermask:
Yellow Coverlay, Green Soldermask
Smt Efficiency:
BGA.QFP.SOP.QFN.PLCC.CHIP
Highlight:

PI Rigid flex circuit Board

,

ENIG Finish Rigid flex circuit Board

,

4 Layer Rigid flex circuit Board

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Vacumm package
Delivery Time
1-2 weeks
Payment Terms
T/T
Product Description

Product Description:

With a high level of precision and reliability, the Rigid-Flexible Printed Wiring Board is a valuable tool for designers and engineers. The product is available in a variety of sizes, shapes, and configurations, and can be customized to meet specific requirements. It is also compatible with a range of surface finishes, including HASL, ENIG, and OSP, making it a versatile choice for a range of applications.

The Rigid-Flexible Printed Wiring Board is manufactured to the highest quality standards, with an outline tolerance of ±0.1mm and a minimum line width of 4mil. This ensures that the product is accurate and reliable, making it a great choice for applications that require high levels of precision and performance.

The product is available in a range of copper thicknesses, from 0.5-1oz, allowing designers and engineers to select the best option for their specific needs. The Rigid-Flexible Printed Wiring Board is also supplied with a Gerber File and Bom List, making it easy to integrate into existing designs and systems.

Overall, the Rigid-Flexible Printed Wiring Board is a valuable tool for anyone looking to design or develop a flexible and compact circuit board. With its high level of precision and reliability, it is an ideal choice for a wide range of applications, from aerospace and military to consumer electronics and telecommunications.

Flexible Rigid Printed Wiring Board is a great choice for applications that require a combination of both flexibility and rigidity. The product is designed to meet the demands of a wide range of industries, including aerospace, military, medical, telecommunications, and consumer electronics. With its high level of precision and reliability, it is an ideal choice for anyone looking to design or develop a flexible and compact circuit board.



Features:

  • Product Name: Rigid Flex PCB
  • Min Line Width: 4mil
  • Soldermask: Yellow Coverlay, Green, Red
  • Outline Tolerance: ±0.1mm
  • Copper thickness: 0.5-1OZ

Our Rigid Flex PCB, also known as Flex-Rigid Printed Circuit Board or Flexible Rigid PCB, offers:





Technical Parameters:

Product Name Flex-Rigid Printed Circuit Board
Base Material Polyimide (Kapton) (PI) + FR4
Outline Tolerance ±0.1mm
Smt Efficiency BGA.QFP.SOP.QFN.PLCC.CHIP
Min Line Width 4mil
Copper Thickness 0.5-1oz
Service Quick turn and mass production
Soldermask Coverlay, Green, Red
Quote Requirement Gerber File And Bom List
Certificates ISO9001, ISO14001, RoHS
Surface Finish HASL, ENIG, OSP


Applications:

The use of Rigid-Flexible PCBs is ideal for applications that require a combination of flexibility and durability. They are commonly used in aerospace, medical devices, automotive, and military applications.

The Flexible Rigid PCB product is widely used in the aerospace industry. The boards can be designed to fit into tight spaces and are capable of withstanding extreme temperatures and vibrations. They are also used in medical devices where flexibility is important in order to accommodate various body shapes.

In the automotive industry, Rigid-Flexible Printed Wiring Boards are used in various electronic systems such as engine control units, airbag systems, and infotainment systems. They are reliable and provide high performance in harsh environments.

Flexible Rigid PCB is also commonly used in military applications where durability and reliability are crucial. They are resistant to shock, vibration, and extreme temperatures.

The Rigid-Flexible PCB product offered by Customized is certified with various certifications such as ISO90001, UL, RoHS, and REACH. The minimum order quantity is only 1 piece and the price is negotiable. The packaging details include vacuum packaging and the delivery time is flexible.

Overall, Rigid-Flexible Printed Circuit Boards are versatile and can be used in a variety of applications. The flexibility and durability provided by these boards make them an ideal choice for industries that require high performance and reliability.
