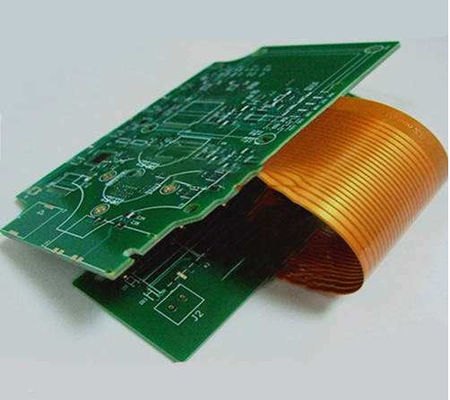

6 Layer Rigid Flex PCB FR4 And PI Materail 4mil Line Width Black And Yellow Coverlay ENIG

Product Description:

One of the key features of the Rigid Flex PCB is its copper thickness, which can range from 0.5-1oz. This makes it well-suited for a variety of applications, from low-power devices to high-power industrial equipment. The Rigid Flex PCB also has a minimum line width of 4mil, which makes it ideal for applications that require high precision and accuracy.

The Smt Efficiency of the Rigid Flex PCB is also noteworthy. It can accommodate a range of components, including BGA, QFP, SOP, QFN, PLCC, and CHIP. This makes it highly versatile and suitable for a wide range of applications.

The Base Material of the Rigid Flex PCB is made of Polyimide (Kapton) (PI) and FR4. This combination of materials allows the PCB to be both flexible and rigid, making it highly adaptable to different design requirements. The Polyimide (Kapton) (PI) material is used for the flexible parts of the PCB, while the FR4 material is used for the rigid parts. This combination of materials also makes the Rigid Flex PCB highly durable and resistant to damage.

The Soldermask of the Rigid Flex PCB is made of Coverlay and comes in green and red colors. The Coverlay Soldermask provides a protective barrier against moisture and other contaminants, ensuring that the PCB remains in good condition over time.

Overall, the Rigid Flex PCB is a highly versatile and adaptable type of PCB that offers a range of benefits over traditional rigid or flexible PCBs. Its combination of flexibility and rigidity makes it well-suited for a wide range of applications, and its high precision and accuracy make it ideal for use in high-tech industries such as aerospace, medical equipment, and telecommunications.

Features:

• Product Name: Rigid Flex PCB
• Soldermask: Coverlay, Green, Red
• Outline Tolerance: ±0.1mm
• Smt Efficiency: BGA.QFP.SOP.QFN.PLCC.CHIP
• Quote Requirement: Gerber File And Bom List
• Copper Thickness: 0.5-1oz

This product is also known as Flex-Rigid Printed Circuit Board, Rigid-Flexible Printed Circuit Board, or Flexible Rigid PCB.

Technical Parameters:

Applications:

The Rigid-Flexible Printed Wiring Board boasts a minimum order quantity of just 1 piece and features a flexible delivery time to meet the specific needs of each customer. Its price is negotiable, and it comes vacuum-packed for optimal protection during shipping. The product's ±0.1mm outline tolerance, coupled with its ISO9001, ISO14001, and RoHS certificates, make it a versatile solution for a wide range of applications.

The base material for the Rigid-Flexible Printed Wiring Board is Polyimide (Kapton) (PI) and FR4, ensuring its durability and resilience. This product is also compatible with Flex PCBA PCB, BGA.QFP.SOP.QFN.PLCC.CHIP, which enables efficient surface mount technology (SMT) during the assembly process.

The Rigid-Flexible Printed Wiring Board has a broad range of applications and can be used in various scenarios. Its high-quality construction makes it ideal for use in harsh environments, including those with extreme temperatures, humidity, and vibrations. It is an excellent choice for aerospace and automotive industries, where reliability is paramount. Additionally, the Rigid-Flexible Printed Wiring Board is ideal for use in medical devices, as its flexible construction allows it to conform to specific shapes and designs.

In conclusion, the Rigid-Flexible Printed Wiring Board is a versatile product that can be customized to meet the specific needs of each customer. Its compatibility with Flex PCBA PCB and SMT technology makes it an efficient solution for a wide range of applications. Its high-quality construction, combined with its certifications, ensures its reliability and durability. The Rigid-Flexible Printed Wiring Board is an excellent choice for the aerospace, automotive, medical, and telecommunications industries, as well as any other industry requiring a durable and reliable solution.
