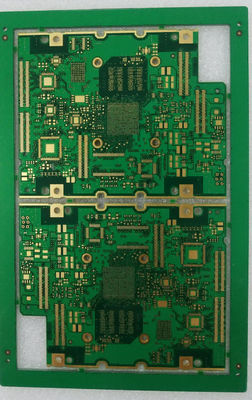

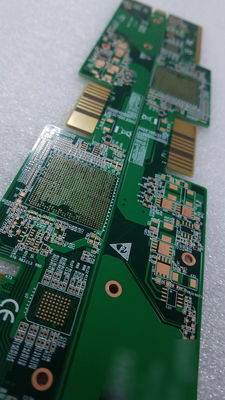

HDI PCB Board 6L 1OZ EING 0.1mm Hole gold finger Green Soldermask For Data Stroage
  • HDI PCB Board 6L 1OZ EING 0.1mm Hole gold finger Green Soldermask For Data Stroage
  • HDI PCB Board 6L 1OZ EING 0.1mm Hole gold finger Green Soldermask For Data Stroage

HDI PCB Board 6L 1OZ EING 0.1mm Hole gold finger Green Soldermask For Data Stroage

Place of Origin China
Brand Name Customized
Certification UL, ISO90001
Product Details
Layer:
6 Layer
Copper Thickness:
1/1/1/1/1/1OZ
Board Thickness:
1.6mm
Hole Size:
0.1mm
Surface Finish:
EING, Gold Finger, OSP
Soldermask:
Green
Legend:
White
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Vacuum package
Delivery Time
Quoted per file
Payment Terms
T/T
Product Description

The key control points in HDI PCB fabrication include the following:



Laser Drilling: The accuracy and precision of laser drilling are critical in creating microvias and achieving the desired routing density. The control of laser parameters, such as power, spot size, and beam quality, ensures consistent and precise drilling.



Copper Plating: The copper plating process for microvias requires control over factors like bath chemistry, plating time, current density, and uniformity. Proper control ensures reliable copper thickness and coverage within the microvias.



Image Transfer and Etching: Precise image transfer and etching processes are essential to create fine circuit traces and maintain the integrity of the high-density layout. Control over photolithography parameters, etchant composition, and uniformity ensures accurate pattern transfer and etching results.



Alignment and Registration: HDI PCBs often involve multiple layers with complex interconnections. Accurate alignment and registration during layer stacking, drilling, and imaging processes are crucial to maintain proper connectivity and avoid misalignments.



Surface Finish: Selection and control of the surface finish process impact the overall performance and reliability of the HDI PCB. Factors like thickness, uniformity, solderability, and compatibility with subsequent assembly processes need to be carefully controlled.



Component Placement: High-density components with fine pitch require precise placement techniques and equipment. Control over pick-and-place machines, accuracy of component positioning, and alignment with the PCB's fine features are essential to ensure successful assembly.



Testing and Inspection: Rigorous electrical testing, functional testing, and inspection processes are crucial to verify the integrity and quality of HDI PCBs. Proper control and calibration of testing equipment, as well as thorough inspection procedures, help identify any defects or issues.



Quality Assurance: Throughout the HDI PCB fabrication process, quality control measures, adherence to standards, and documentation play a vital role. Monitoring process parameters, conducting regular quality checks, and maintaining traceability ensure consistent quality and customer satisfaction.



These control points are critical to achieving the desired performance, reliability, and miniaturization of HDI PCBs. Precise control and optimization of each step are necessary to meet the specific requirements of high-density designs and applications.
